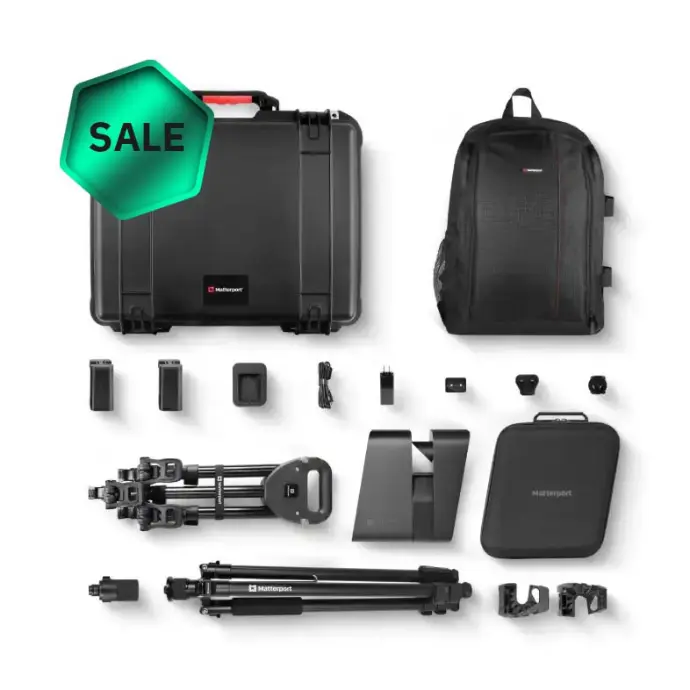

Matterport Pro3 Performance Kit

Product description

Create beautiful, professional 3D digital spaces

• Captivating, high-resolution, photorealistic digital twins

• Extended scanning range up to 100 m for fast capture of large spaces (*Standard range 20 m, extended range only available in e57 files)

• Impressive scanning and imaging capabilities indoors and outdoors, even in direct sunlight!


Unbelievable accuracy and resolution

• Ultra-fast, high-precision lidar sensor performs millions of measurements per scan

• High precision rendering of large projects (+/- 20mm @10m) and high precision digital twin generation (100K points per second).

• Performs each scan in <20 seconds

• Removable, rechargeable battery allows continuous scanning up to all day.


Technical specification

General

• Dimensions: 181mm x 161.4mm x 76mm

• Weight: 2.2kg

• Battery: >220 scans continuously, assuming consecutive scans

• Battery charge time: 2.5 hours at 80% charge, 3.5 hours at 100% charge

• Mounting mechanism: quick-release tripod clamp; 3/8-16 internal thread

• GPS: Includes

• Operating temperature: 0°C to 40°C

• Storage temperature: -20°C to 60°C

• Ingress protection: IP43


Scanning

• Depth technology: LiDAR

• Laser: Class 1 (according to IEC 60825-1:2014)

• Wavelength: 904 nm

• Field of view: 360° H / 295° V

• Accuracy: +/- 20mm @ 10m

• Depth resolution: 100k points per second, 1.5M points/scan

• Minimum operating range: 0.5m

• Maximum operating range: Up to 100m (E57 only)

• 3D data registration: Automatic


Imaging

• Output pano pixels: 134.2MP

• Number of exposures per HDR frame: 5

• White balance: automatic, full model


System

• Capture speed: <20 seconds/scan

• Camera startup time: <40 seconds

• Remote operation: Matterport Capture app on Apple or Android mobile devices

• Wireless communication: BLE for Wi-Fi connection setup, WiFi 802.11 5GHz communication with mobile device running Capture App
