Field of view

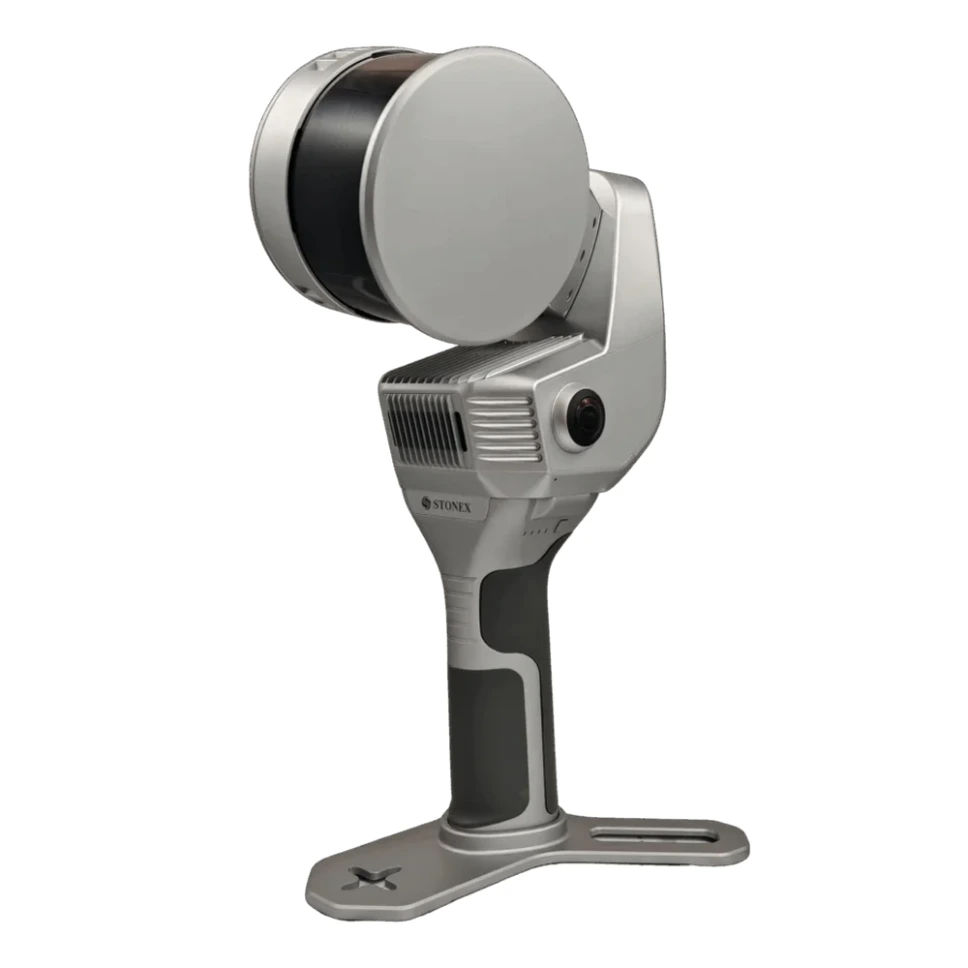

The new XGO120 has a 360x290 degree field of view.
Camera
The XGO120 scanner has 2x12Mpx cameras.
Automatic control point measurement
X120GO can automatically collect ground control points, simply by standing over the same point for a few seconds. This will make it easy to rototranslate or georeference the data obtained .
GOapp
GOapp is dedicate mobile application for X120GO , to manage projects, real time point cloud display, image preview, firmware upgrade and other operations. The APP runs on Android devices.
GOpost
Windows post processing software which performs: • optimization processing • coloring of point clouds • creation of panoramic images • rototranslation on GCP.
Technical specification
32-channel version
X120GO Documentation
Click on the icon to download!
SYSTEM
|
Data storage |
512GB SSD |
|
Communication |
Wi-fi, Bluetooth, USB type-c, Lemo connector |
|
Operating mode |
SLAM &X-Whizz modes, real-time visualisation (colored and oriented) |
|
Processing mode |
Real-time processing, Post-processing with GOpost |
ELECTRICAL SPECIFICATION
|
Power consumption |
26W |
|
System supply voltage |
20V |
|
Operating time |
1.2h (1 battery) |
|
Battery capacity |
3350mAh |
PHYSICAL SPECIFICATION
|
Weight |
1.6 kg (without battery) |
|
Size |
404 mm x 170 mm x 188 mm |
|
Operating temperature |
-20°C to +50°C (-4°F to 122°F) |
|
Operating humidity |
<95% RH |
|
Waterproof/Dustproof |
IP54 |
Performance
|
Max Range |
120 m |
|
Min Range |
0.5 m |
Relative accuracy | up to 6mm |
LiDAR sensor | 32 channels |
|
Scanning Point Frequency |
640.000 pts/s (single return) – 1.280.000 pts/s (dual return) |
|
Field of view |
360°x290° |
|
Laser Class |
Class 1 eye-safe per IEC/EN 60825-1:2014 |
|
Wavelength |
905nm |
Camera
N° of pixels | 24 Mpx 2( cameras, 12 Mpx each) |
Cameras FOV | 210° |
Resolution | 4000x3000 px |
Sensor size | 1/2.3 inch |
